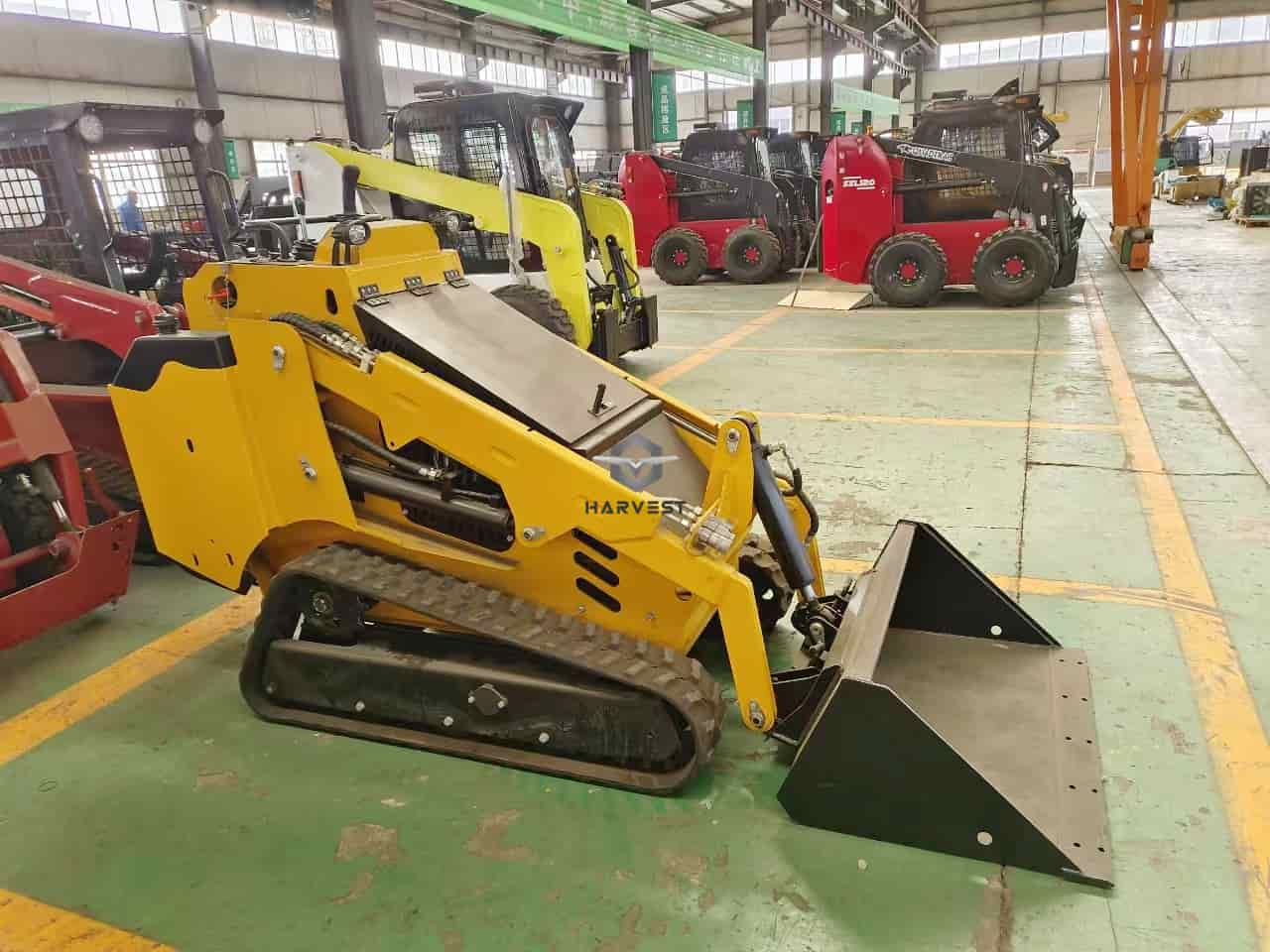

Stand-on Skid Steer Loader LY850 with 0.2m3 bucket & Kubota engine Hot Sale
The LY850 stand - up skid steer loader features a compact and flexible body design, making it suitable for a variety of narrow - space operation scenarios. Its design concept focuses on operational convenience and efficiency, enabling quick switching of work attachments to meet different task requirements.
Key Parameters
- Bucket Capacity: Equipped with a 0.2 - cubic - meter bucket, this capacity is ideal for small - scale material handling operations. It allows for precise loading and unloading of materials in confined areas, preventing space congestion.
- Engine: Powered by a Kubato brand engine with a power output of 18.2 kilowatts. This engine offers excellent stability in power delivery and fuel economy, ensuring the loader can operate steadily under various working conditions and reducing long - term operating costs
Pump System
- The LY850 skid steer loader is equipped with PWG - branded gear pumps and hydraulic control pumps, which serve as the core of the hydraulic power system. Gear pumps, with their simple structure and high reliability, are responsible for continuously supplying hydraulic oil to the system, ensuring a stable basic flow. Their positive displacement characteristics mean they can maintain a relatively constant flow rate regardless of changes in system pressure within a certain range, which is crucial for basic operations such as the continuous movement of the loader.
- The PWG - branded hydraulic control pumps, on the other hand, are designed for more precise control of the hydraulic system. They can adjust the pressure and flow of hydraulic oil according to different working conditions and operational requirements. For example, during heavy - load operations, they can increase the output pressure to ensure sufficient power for the work attachments; when fine - tuning operations are needed, they can accurately control the flow to achieve precise movements of the bucket or other devices.
Motor System
The LY850 is equipped with Danfoss - branded motors, a well - known name in the field of high - performance hydraulic components.
- Travel Motor: The Danfoss axial piston travel motors are responsible for driving the tracks or wheels, enabling the loader to move. These motors are renowned for their high - torque output and excellent speed control capabilities. They can generate sufficient torque to drive the loader on various terrains, including soft ground or slopes, preventing slipping and ensuring reliable passability. Their precise speed control also allows the operator to move the loader with great accuracy, which is essential when working in tight spaces.
- Work Attachment Motor: Danfoss motors used for driving work attachments, such as the tilting of the bucket and the lifting of the boom, offer outstanding responsiveness and control precision. They can quickly and accurately translate hydraulic energy into mechanical motion, enabling the work attachments to perform complex and fine - tuned operations. Whether it's a gentle bucket tilt for precise material placement or a rapid boom lift for efficient loading, these motors ensure smooth and accurate movements.
Coordinated Operation
The PWG pumps and Danfoss motors work in close coordination to form a highly efficient hydraulic drive system. The PWG pumps deliver high - pressure hydraulic oil to the Danfoss motors according to the operational requirements. The motors, in turn, convert this hydraulic energy into mechanical motion with precise control over speed and torque. During actual operations, the operator sends control signals through the control levers. The hydraulic system, consisting of PWG pumps and Danfoss motors, responds promptly to these signals. The PWG hydraulic control pumps adjust the pressure and flow of the hydraulic oil, while the Danfoss motors react accordingly, ensuring smooth, efficient, and accurate execution of all movements of the loader.
Technical Specification of LY850 Mini Tracked Skid Steer Loader
| Model Number | LY850 |
| Performance parameter |
| Rated load (kg) | 350 |
| Maximum speed (KM/H) | 12 |
| Hydraulic flow (L/min) | 80 |
| High flow system flow | 120 |
| Tire type | 320 * 86 |
| Rated Power (kW) | 55 |
| Fuel tank capacity (L) | 90 |
| Operating Weight (kg) | 3800 |
| Bucket Volume (m) | 0.5 |
| Dimension parameter |
| Maximum operating height (mm) | 3480 |
| Bucket pin height (mm) | 2900 |
| Cab Ceiling Height (mm) | 2150 |
| Bucket to its maximum bottom height (mm) | 2730 |
| No total bucket length (mm) | 2750 |
| Full length with the bucket (mm) | 3500 |
| Maximum height unloading angle (mm) | 40 |
| Discharge Height (mm) | 2230 |
| Unloading Distance (mm) | 715 |
| Bucket reversal angle (mm) at ground level | 30 |
| Bucket tipping angle at maximum (mm) | 104 |
| Wheelbase (mm) | 1500 |
| Ground Clearance (mm) | 200 |
| Angle of departure (°) | 20 |
| Turning radius (mm) without a bucket | 1298 |
| Forward turning radius (mm) | 2010 |
| Rear turning radius (mm) | 1714 |
| Tail length (mm) | 890 |
| Wheelbase (standard tire)(mm) | 1462 |
| Vehicle Width (standard tire)(mm) | 1782 |
| Standard bucket width (mm) | 1830 |
Operating Console of Mini Tracked Skid Steer Loader LY850 Hot Sale
- Control Levers: The prominent large control lever in the picture is used to control the walking and work - device movements of the LY850 skid - steer loader. Through forward, backward, left, and right operations, it can accurately control the equipment's forward and backward movement, steering, as well as the lifting and tilting of the bucket. The operation is intuitive and highly responsive, enabling operators to quickly get started and achieve refined operations. The smaller control lever beside it may be used to control auxiliary functions or the movements of specific work attachments, providing more operational dimensions for complex tasks.
- Instrument Panel: The instrument panel located behind the control levers can display key parameters of the equipment in real - time, such as engine speed, oil pressure, and water temperature. Operators can always understand the running status of the equipment through the instrument panel, and promptly detect potential fault hazards to ensure the safe and stable operation of the equipment.
- Control Buttons: There are also some control buttons distributed on the operating console, which may include functions such as light control, warning light switch, and emergency braking. These buttons provide operators with a convenient way to control the equipment's status, meeting the operation requirements in different working scenarios. For example, turning on the lights when the light is insufficient, and pressing the emergency braking button in case of an emergency.
- Keyhole: It is used to start and shut down the loader, serving as the control hub of the equipment's power system to ensure the safety and standardization of the equipment's use.
Pedal of Stand-on Skid Steer Loader LY850 with 0.2m3 bucket Near Me Sale
The pedal at the rear of the loader features an anti - slip design, with a diamond - shaped pattern on its surface. This effectively prevents the operator from slipping when getting on and off the equipment. It provides a safe and stable platform for the operator to get on and off the operating console, facilitating the operator to enter and leave the operating console conveniently. Especially in working conditions where the equipment needs to be frequently started and stopped, and personnel need to get on and off frequently, it plays an important role in ensuring safety.
|
|
